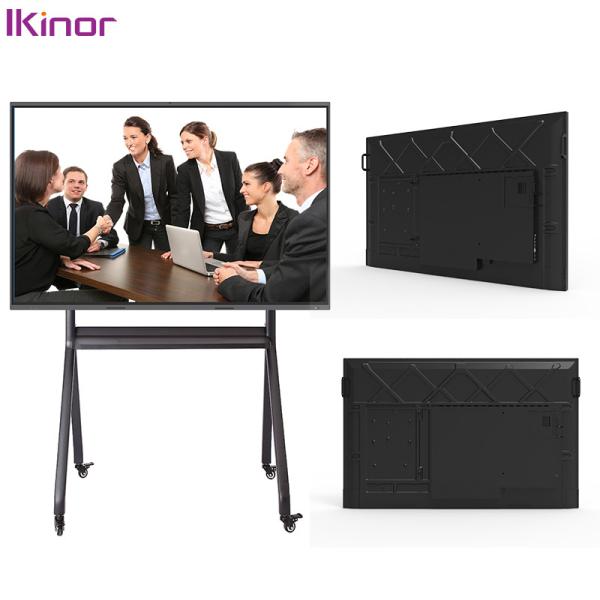

    PR86 Inch Interactive Flat Panel Display Touch Screen Board For Business Conference

    Ask Lasest Price
    Brand Name : Ikinor
    Model Number : PR65 75 86 98 110
    Certification : CE/FCC/ROHS
    Price : $600-$6000/pc
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5K/month
    Delivery Time : 10-15 working day
    • Product Details
    • Company Profile

    PR86 Inch Interactive Flat Panel Display Touch Screen Board For Business Conference


    Ikinor 65 75 86 98Inch Conference Interactive Display Interactive Whiteboards


    All in one solution that provides multi-platform for video conferencing, wireless content presentation, a powerful remote whiteboard canvas on a supported IKINOR Interactive Whiteboard or Collaboration Board.



    Key Features for Ikinor interactive touch panel



    All-in-one collaborative meeting software


    High accuracy writing, free annotation with fine writing, good video conference experience



    Easy share


    4 split screen to display the content from different mobile devices.

    Realizing Information sharing and multiple communication




    Creative Collaboration for Interactive Whiteboard


    Meetings are an integral part of modern-day corporate life, where collaboration, commitment, and productivity are key elements to an effective meeting.



    Product Paramenters


    Diagonal display size65"75"86"98"110"
    Bezel colorAluminum frame(Silver color)
    Back LightDirect type LED
    Active area (mm)(H) * (V)1428.48 * 803.521649.66 * 927.931895.04 * 1065.962158.85 * 1214.352436.48 * 1370.52
    Resolution3840*2160 /UHD
    Aspect Ratio16:9
    Contrast Ratio1200:1/4000:1
    Colors1.07 billion colors
    Brightness350cd/m2
    Viewing angle178°
    Glass hardnessMohs-7 level
    Screen surface4mm thickness Anti-Glare glass
    Panel Interactivity
    Touch technologyIR touch
    Touch points20 points (Win 7/8/10)
    10 points touch (Android)
    Touch accuracy±2mm(Windows)
    RecognitionFinger or passive stylus
    Response Rate<4ms(single touch)
    <10ms(max touch inputs)
    Minimum object size2mm
    Response Time<5 ms
    System supportWin10/Win8/Win7/Mac OS
    /Android/Chrome OS/Linux
    Front side Connectivity
    Front portsUSB3.0 * 2 lines (Public for both Android & PC); Type * 1 line (Full function)
    Front ButtonIndicator: Red/Blue; Buttons: Power Two position for Magnetic Pen
    Front speaker10W*2
    Rear side Connectivity
    USB 2.0 Type A2
    Touch USB 2.0 Type A1
    HDMI in2
    RJ45 in & out
    (public for Android & PC)
    1
    Coaxial1
    AV in1
    AV out1
    VGA in1
    VGA audio in1
    Earephone out1
    MIC in1
    YPBPR IN1
    RS232 UART1
    Windows OPS SlotOPS & OPS-C Intel standard
    HotspotYes
    BluetoothV 5.0
    WiFiIEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz
    Or IEEE802.11an 2.4GHz
    Operating system
    Android VersionAndroid 11.0
    ChipsetAmlogic T982
    CPU4×ARM Cortex-A55
    GPURM Mali-G52
    RAMDDR4 2GB (4G for Optional)
    ROM16GB (32GB for Optional)
    Compliant withWindows; Mac; Linux; Chrome OS
    Built-in Camera
    ModelUHD Camera
    InstallationBuilt-in the middle-upper frame
    Pixel13MP
    FOVDiagonal: 120°
    Compliant withWindows; Mac; Linux; Chrome OS
    Built-in MIC
    InstallationBuilt-in the middle-upper frame
    Number6, All-around
    Remote Pickup0~8m
    Physical specifications
    Net Weight(kg±2)45588092110
    Gross Weight(kg±2)566893110144
    Overall size(mm)
    (without bracket)
    (L*H*W)1483.8 * 898 * 911706 * 1022 * 91.21958.8* 1154.4 * 91.22216 * 1314.5 * 95.52499.6 * 1474.2 * 95.5
    Overall size(mm)
    (with bracket)
    (L*H*W)1483.8 * 898 * 1211706 * 1022 * 121.21958.8*1154.4*121.22216 * 1314.5 * 125.52499.6 * 1474.2 * 137.5
    Carton size(mm)(L*H*W)1590 * 1110 * 2001820 * 1240 * 2002060*1370*2002362 * 1533 * 2102606 * 1593.1 * 200
    VESA(mm)500*400600*400800*4001000*4001200*600
    Electrical
    Input Voltage90-264V AC
    Power Consumption(Standby)<0.5W
    Power ConsumptionMaximun< 225WMaximun< 335WMaximun< 450WMaximun< 650WMaximun< 760W
    Environmental
    Working
    Temperature
    0 ~ 40
    Storage
    Temperature
    20 ~ 60
    Working Humidity10% ~ 90% RH
    Non-Condensing
    Storage Humidity10% ~ 60% RH
    Non-Condensing
    Accessories
    AccessoriesPen * 1pcs, Remote control *1pcs, 2m power cord *1pcs, wall mount kit;
    Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional)
